Super wide range covers a wide range of overtones. You can realistically hear each string with clear sound quality.
Recommended for when you use a lot of effectors and for recording!!
Features of S101 cable
The Studiowizard® S101 model aims to minimize problems faced by musicians, keeping in mind situations such as full-scale recording that requires a wide range, frequent use of effectors, and long cable routing in the studio. was developed.
It is generally said that long cables reduce the high frequency range and thin out the sound, but the S101 model uses Providence's unique core wire composition NSC2 OFC for the conductor and a new material NAP ELASTOMER for the insulator, so it can produce low frequencies without impairing the original sound. It covers a wide range from low to high frequencies, providing a crisp and clear sound. In addition, NAP ELASTOMER makes it lighter and more flexible than conventional products of the same type (compared to our company). Furthermore, electromagnetic noise is shut out by using a super dense braided shield and carbon-containing conductive vinyl. Protects your precious sound from the floor-slapping noise that comes with using cables, high-frequency noise from TVs and radios, and noise generated from motors, etc. For the plugs, we use all 24k gold-plated Providence NP-14G Long/Mid and NP-14GL Mid (91° L-type plug), which best match the sound desired by the S101 cable.
A plug that fits perfectly and provides peace of mind <br>Providence's original phone plug NP series is made in Japan with both the plug body and shell machined from brass. It is a handcrafted product that requires manual labor in many of the manufacturing steps. The plug shaft is φ6.3mm. There is little variation from product to product, and it fits snugly into inch-sized (1/4 inch) jacks used in most musical instruments such as guitars, making it difficult to pull out, and the many contact points between the plug and jack improves sound quality. have a positive impact.
*Note) Excludes LE series.
Providence's unique practicality and ideas ●When developing a product, Providence cables always test numerous combinations of plugs and solders, and choose the combination that best matches the sound they are looking for.
●Similarly, we select gold-plated or nickel-plated plugs to match the sound quality and individuality of each cable.
●The L-shaped plug has a unique angle of 91° (utility model), which secures space between the device and the device to hold the plug, and applies vertical force to reduce the load on the jack and plug when plugging or unplugging. Masu. It also makes it easy to connect to devices with an angled jack and chassis, such as wah-wah pedals.

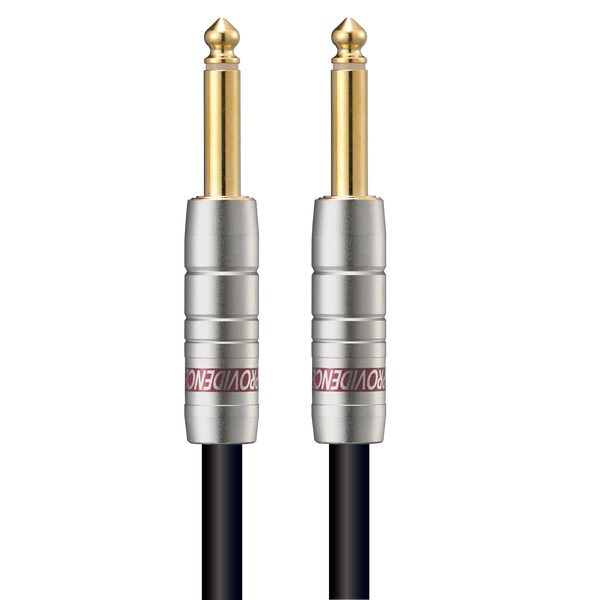

About the plug form of the Providence cable ●In the case of S/S (straight/straight), one side has a long shell that can be easily inserted and removed using a Stratocaster's boat jack, and the amplifier/effector side has a slightly shorter mid shell.

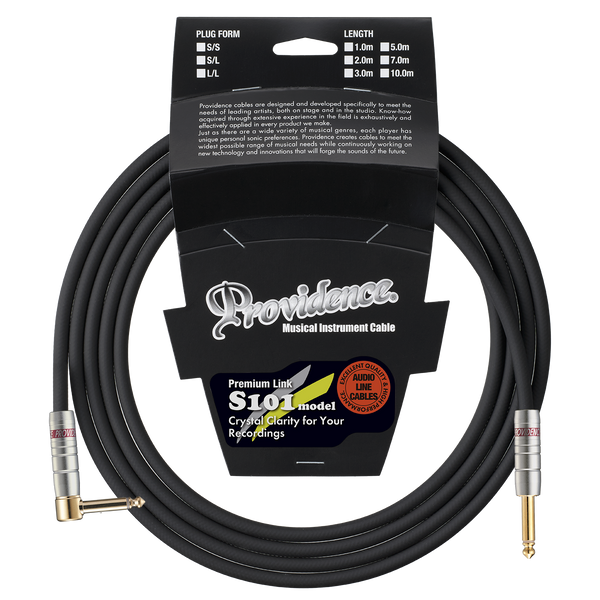

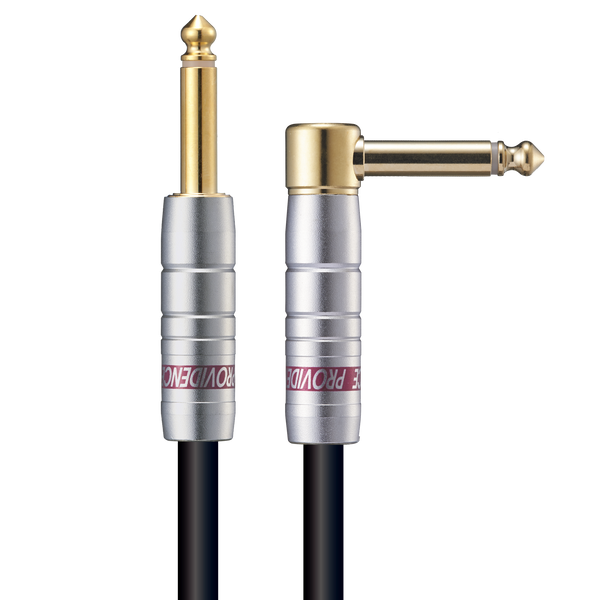

●In the case of S/L (straight/L type), it is a combination of a mid shell L type that is easy to use even with a side jack on one side and does not get in the way, and a long shell straight on the other side.

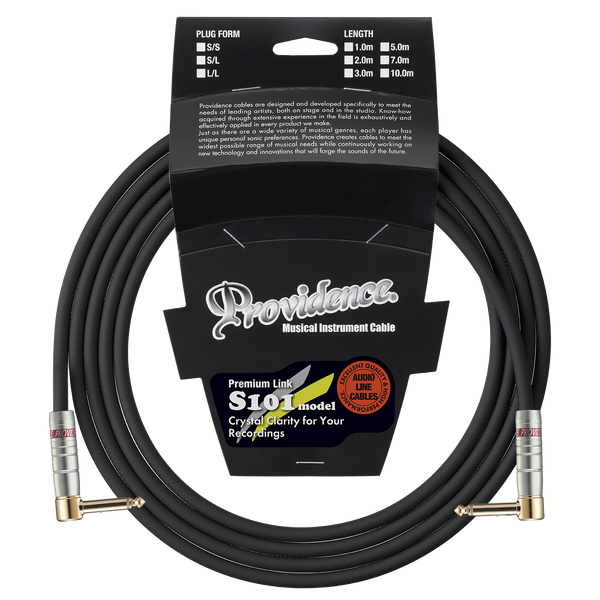

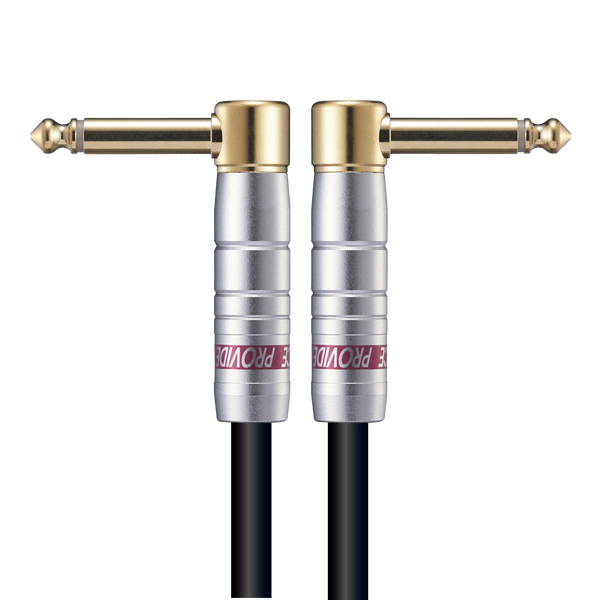

●L/L (L type/L type) uses a mid-shell L type that is easy to use on both sides and does not get in the way.
For more information about Providence plugs → https://pacifix-one.com/collections/plugs
• SPECIFICATIONS
・Providence with NCS2 OFC
・Conductor Size: 0.50mm²
・Construction(No./mm): 100/0.08 OFC
・Diameter: 0.92mm
・Insulation Thickness: 1.79mm(±0.05)
・Diameter: 4.50mm
・Inner Jacket Thickness: 0.25mm
・Diameter: 5.00mm
・Shield-Diameter: 5.50mm
・Jacket Thickness: 0.75mm(±0.10)
・Diameter: 7.00mm
・Maximum conductor resistance (20˚C): 35.30≧(Ω/km)
・Capacitance(1kHz): Approx.60(pF/m)
・Plug: NP-14G Long/Mid and NP-14GL Mid (L-type plug)
