With a flat and natural sound, it has a wide range and can be used all around.
Recommended for DTM/DAW!!
Features of H207 cable
The basic structure is the same as the P203 model, using Providenc's unique core wire configuration NCS3 OFC for the conductor. The product number "H" comes from the so-called hybrid structure, which uses two different materials, NAP ELASTOMER and SPECIAL POLYETIREN, for the insulator. The jacket is not the purple color that is the biggest feature of the P203 model, but the same black color as the regular cable, which is designed to produce even lower frequencies. Furthermore, electromagnetic noise is shut out by using a super dense braided shield and carbon-containing conductive vinyl. It protects the sound from the floor-slapping noise that often occurs during use, high-frequency noise from TVs and radios, and noise generated from motors, etc. For the plugs, we use all 24 gold plated Providence NP-14G and NP-14GL (L-shaped plugs), which best match the sound required by the H207 cable.
A plug that fits perfectly and is safe <br data-mce-fragment="1">Providence's original phone plug NP series is made in Japan with both the plug body and shell machined from brass. It is a handcrafted product that requires manual labor in many of the manufacturing steps. The plug shaft is φ6.3mm. There is little variation from product to product, and it fits snugly into inch-sized (1/4 inch) jacks used in most musical instruments such as guitars, making it difficult to pull out, and the many contact points between the plug and jack improves sound quality. have a positive impact.
*Note) Excludes LE series.
Providence's unique practicality and ideas ●When developing a product, Providence cables always test numerous combinations of plugs and solders, and choose the combination that best matches the sound they are looking for.
●Similarly, we select gold-plated or nickel-plated plugs to match the sound quality and individuality of each cable.
●The L-shaped plug has a unique angle of 91° (utility model), which provides space between the device and the device to hold the plug, and applies vertical force to reduce the load on the jack and plug when inserting or removing it. Masu. It also makes it easy to connect to devices with an angled jack and chassis, such as wah-wah pedals.

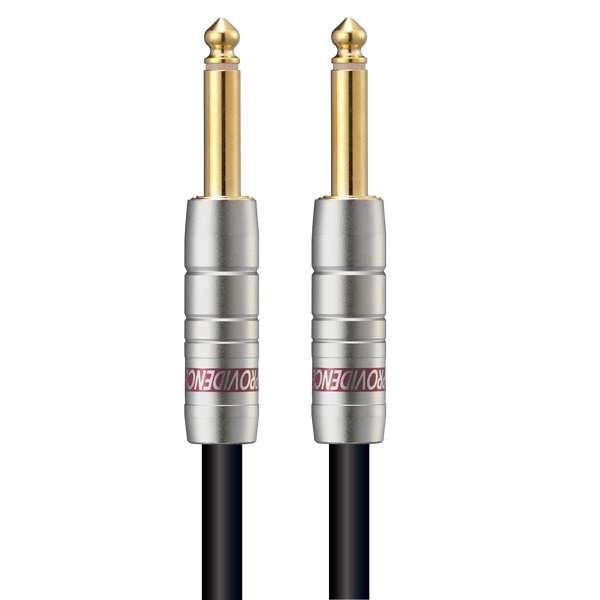

About the plug form of the Providence cable ●In the case of S/S (straight/straight), one side has a long shell that can be easily inserted and removed using a Stratocaster's boat jack, and the amplifier/effector side has a slightly shorter mid shell.

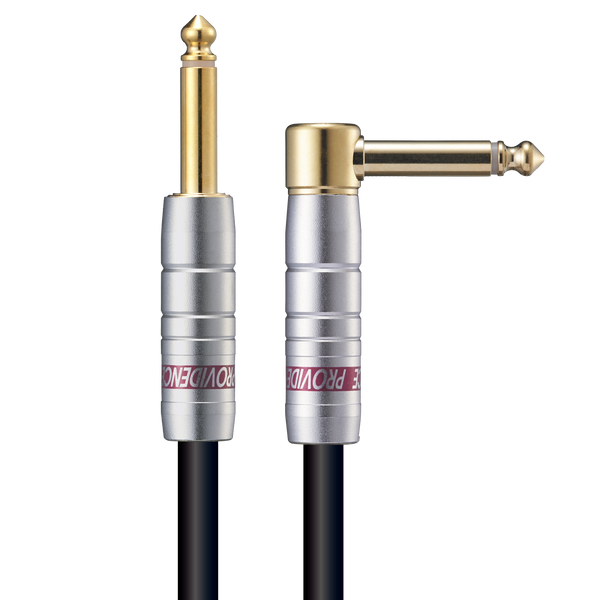

●In the case of S/L (straight/L type), it is a combination of a mid shell L type that is easy to use even with a side jack on one side and does not get in the way, and a long shell straight on the other side.

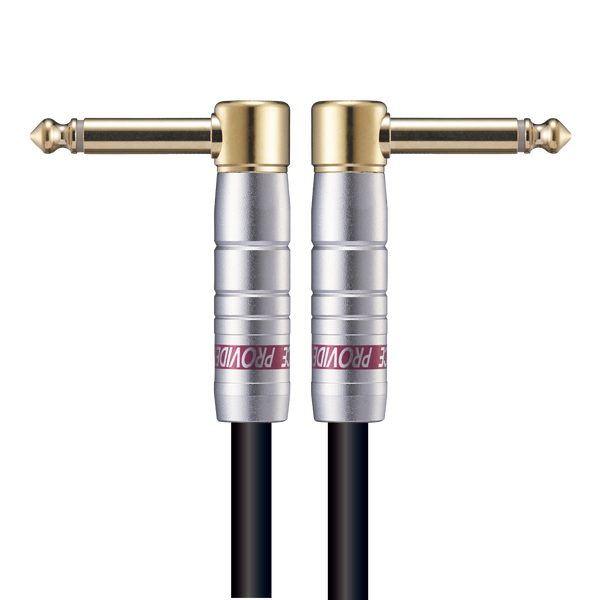

●L/L (L type/L type) uses a mid-shell L type that is easy to use on both sides and does not get in the way.
For more information about Providence plugs → https://pacifix-one.com/collections/plugs
*10.0m is a special order and will be wrapped in a simple plastic bag instead of regular packaging.
• SPECIFICATIONS
・Providence with NCS3 OFC
・Conductor Size(No./mm): 0.25mm²
・Construction: 50/0.08OFC
・Diameter: 0.65mm
・Inner Insulation-Thickness: 1.18mm (±0.05)
・Diameter: 3.00mm
・Outer Insulation-Thickness: 0.25mm (±0.05)
・Diameter: 3.50mm
・Inner Jacket-Thickness: 0.25mm
・Diameter: 4.00mm
・Shield-Diameter: 4.50mm
・JacketThickness: 0.75mm (±0.10)
・Diameter: 6.00mm
・Maximum conductor resistance (20˚C): 70.70≧ (Ω/km)
・Capacitance (1kHz): Approx.70(pF/m)
・Plug: NP-14G Long/Mid and NP-14GL Mid (L-type plug)
